Actuator

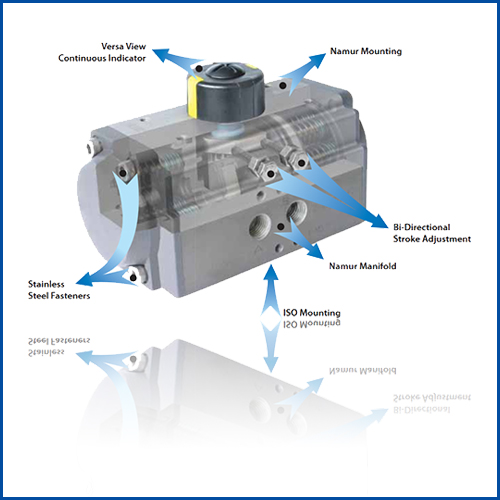

αC Aluminium Alloy Actuator


Operating Conditions
1. Operating media Dry or lubricated air, the non-corrosive gases or oil.
2. Air supply pressure Double acting: 2~8 Bar; Spring return: 2~8 Bar
3. Operating temperatureStandard: -20°C~+80°CLow temperature: -40°C~+80°CHigh temperature: -15°C~+150°C
4. Travel adjustment Adjustment range of ±4°when the pistons at the sides.
5. Lubrication Under normal operating condition, need not accrete lubricant
6. Application Either indoor or outdoor
7. Highest pressure The maximum input pressure is 10 Bar
